• Mount to horizontal surfaces with fasteners of your choice.
• Overall outside dimensions: 18.25" long x 11" wide x 3.5" high.
• Holder is sized to accommodate cans & coozies as well as cups with handles.
• .17"L x 4.5"W x 3"D storage bin with center divider.
• Color is White/White.
• Shipping weight 8 lbs.

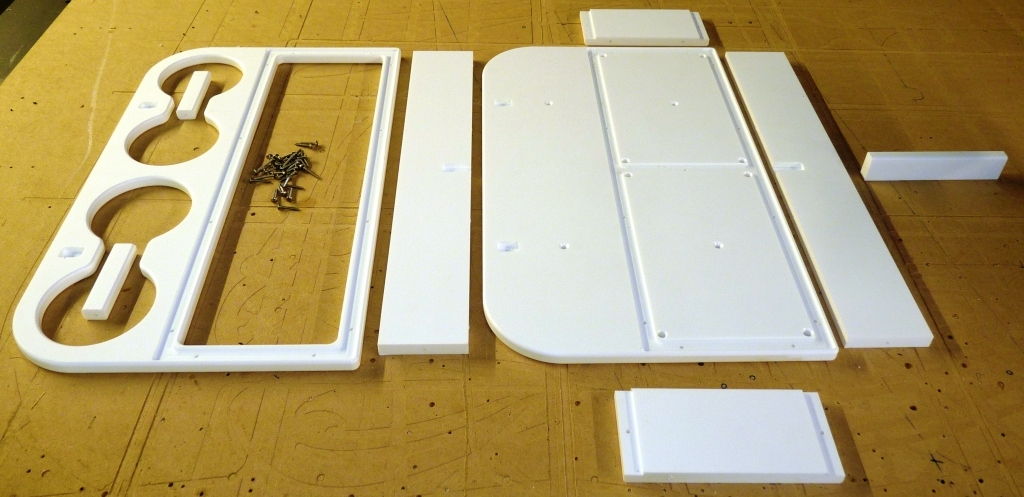

1. Our 4 and 5-Drink Holder kits each contain nine parts -- 2 storage bin ends and 2 sides -- 1 storage bin partition -- 2 vertical support pieces -- 1 bottom panel -- and1 top panel. Our 2-Drink Holder has a single vertical support and no bin partition. Otherwise, all the assembly parts and steps are the same. And each kit includes all the stainless steel fasteners you'll need.

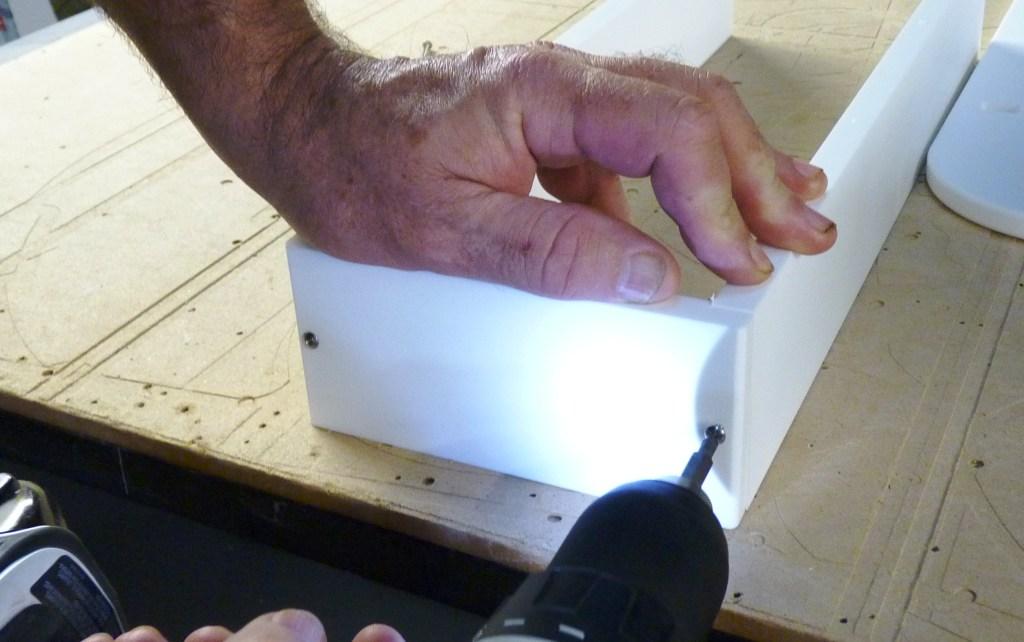

2. You'll begin by assembling the unit's storage bin. Simply butt the notched ends against the side pieces and -- using the pre-drilled holes as guides -- drill into the bin's edges to a depth of about 3/4". Then attach your fasteners as shown.

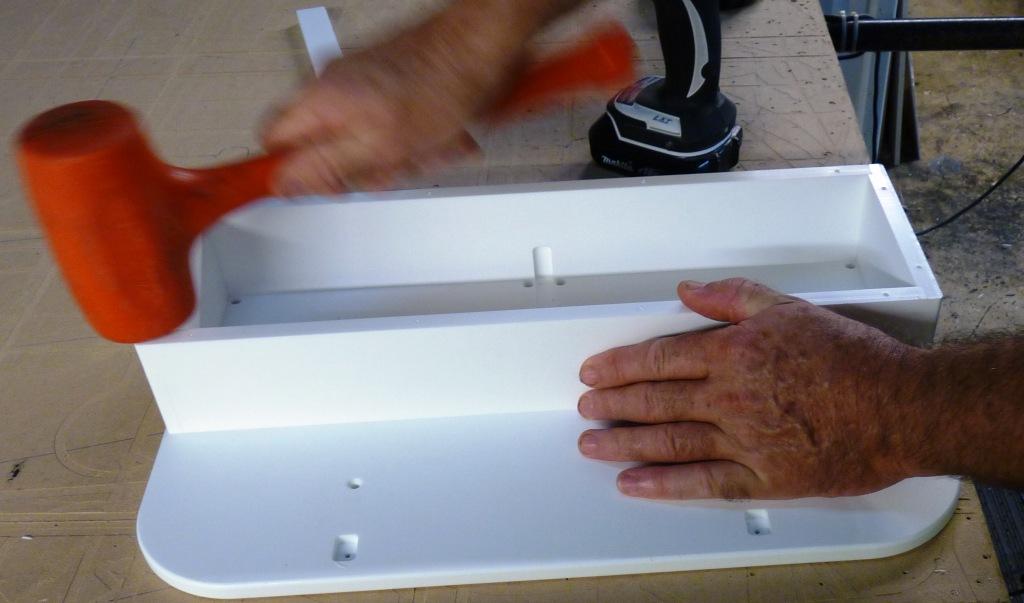

3. Once you have your storage bin screwed together, fit it into the slots in the unit's bottom panel. The tolerances are exact, and you may have to tap the bin a little to seat it all the way into the slots. Also -- you'll need to insert the bin's partition at this point (which our assembler here forgot to do). You can either fit the partitiion into the bottom panel's slot and fit the bin over the partition's back edge -- or fit the partition into the bin's slot and tap it into place along with the bin itself.

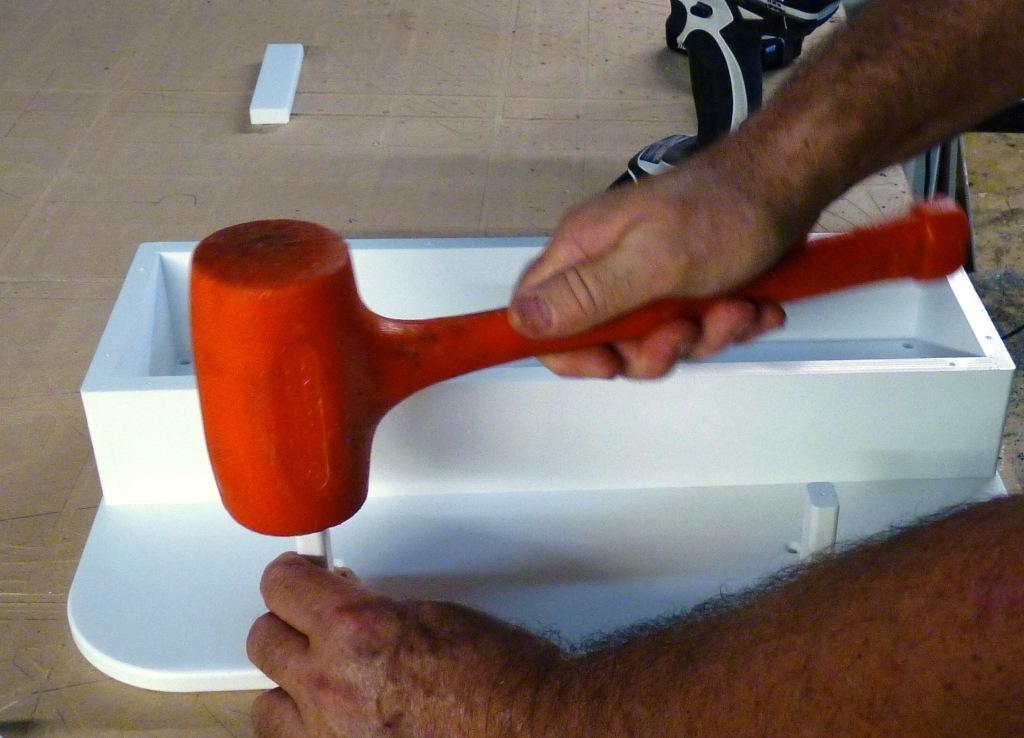

4. Once the storage bin and partition are in place, tap the 2 vertical support pieces into their pre-cut slots as well.

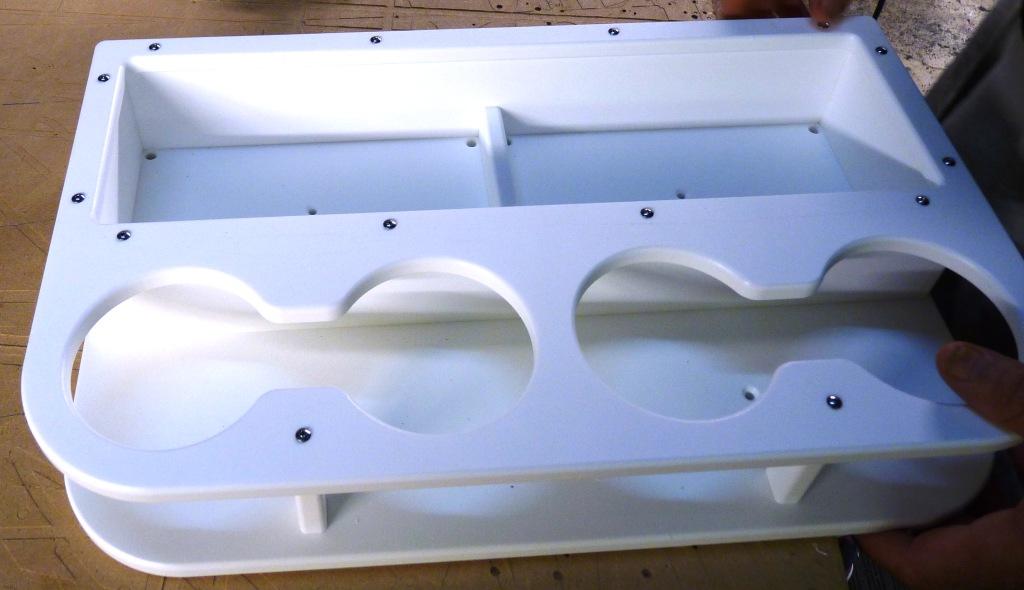

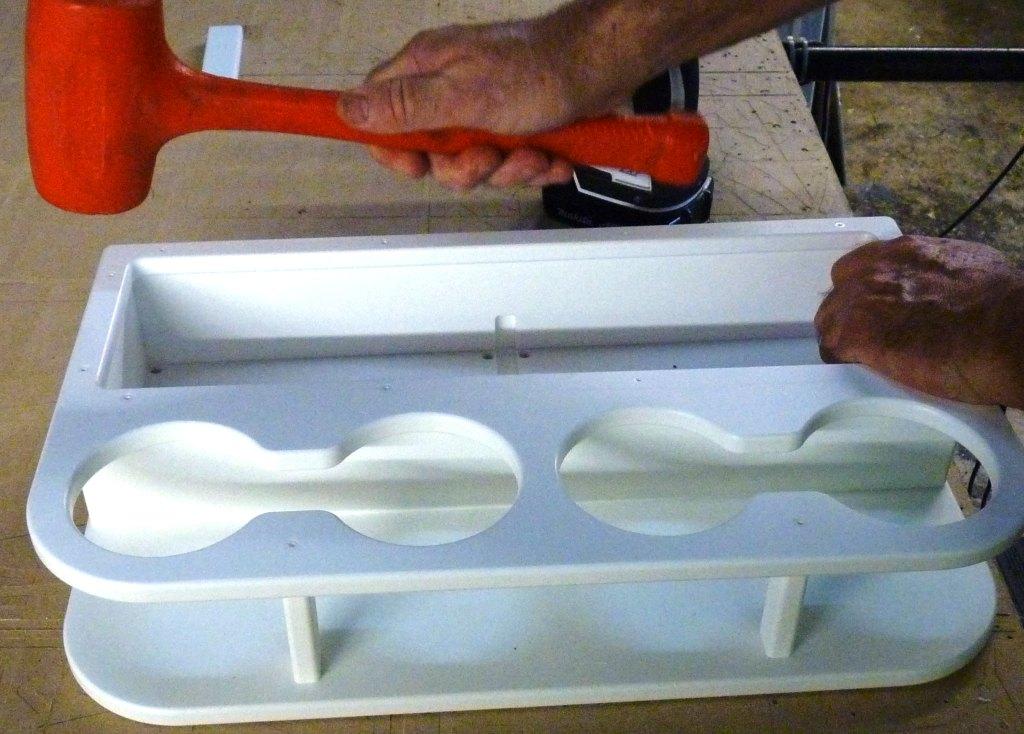

5. Now fit the Drink Holder's top panel over the storage bin and vertical supports. Those pieces will fit into pre-cut slots and may require a bit of tapping to get everything well seated. Once this is done, you're ready to begin final assembly.

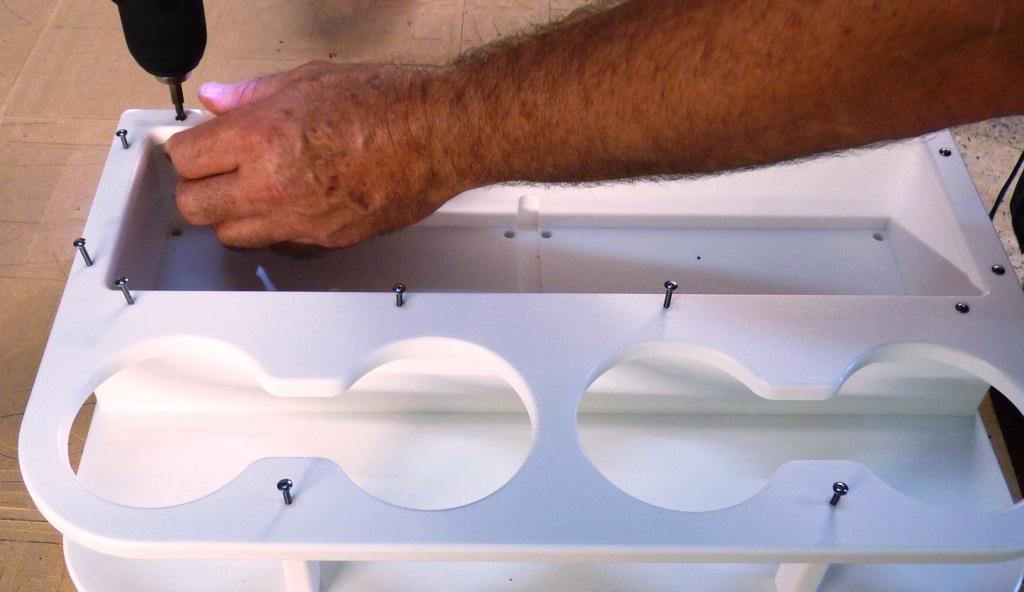

6. Using the pre-drilled holes in the top panel as guides, use a 5/64" to 3/32" bit to drill pilot holes into the edges of the storage bin and vertical supports. Make your holes about 3/4" deep -- being very careful to drill straight into the center.

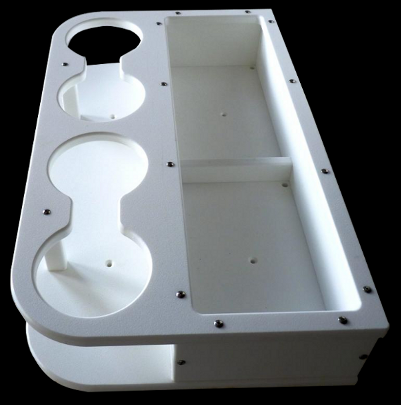

7. Now that you have the unit's top panel fully screwed into place, simply flip the Drink Holder over so that the bottom faces up as shown in step #8.

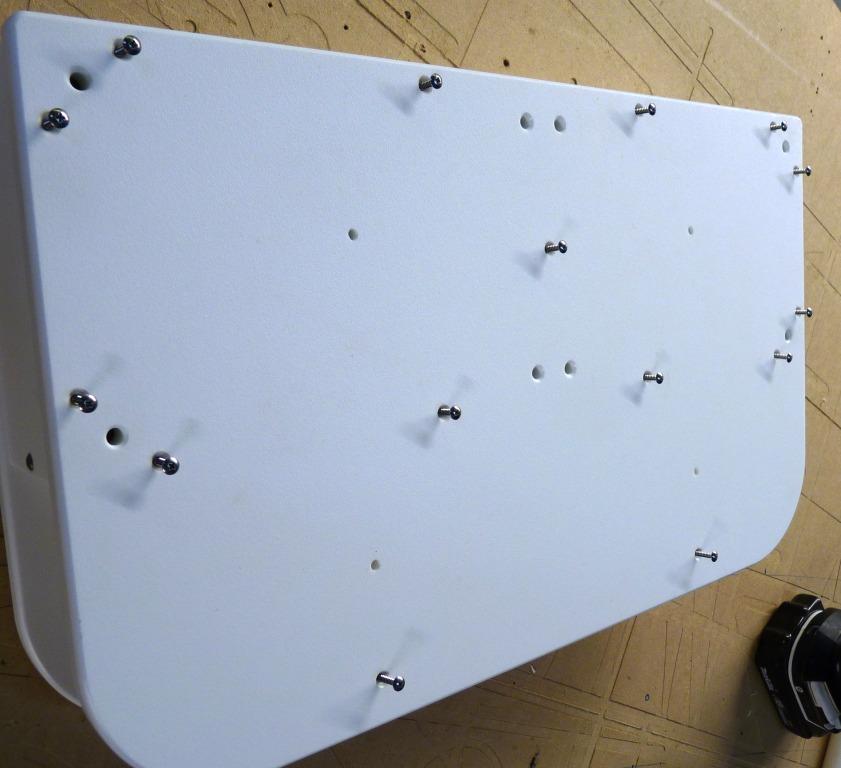

8. Here again, use the pre-drilled holes in the bottom panel as guides for pilot holes you'll sink into the bin's edges and into the vertical supports. You'll note there are more holes than fasteners. These provide drainage for the storage bin, as well as pilot holes for whatever fasteners you use to install the finished unit on your boat. So do that, and then go have some fun.

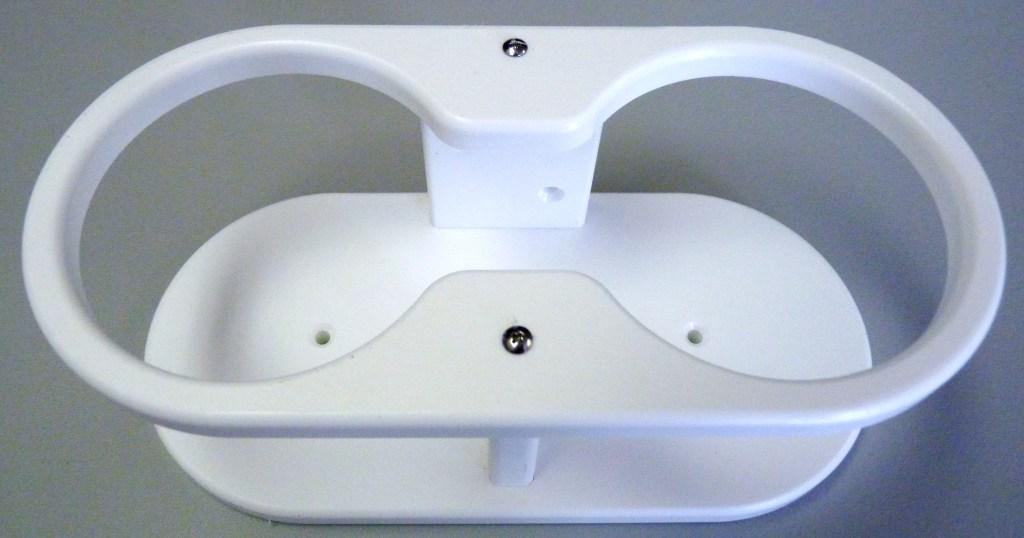

• Double holders measure 8.75 inches long x 4.25 inches wide x 3.5 inches high.
• Holders accommodate cans & coozies -- and also hold containers with handles. (And maybe even a small pair of binoculars?).
• Color is White/White.

• Mount To Vertical Or Horizontal Surfaces With Fasteners Of Your Choice.
• Double holders measure 8.75 inches long x 4.25 inches wide x 3.5 inches high.
• Holders are sized to accommodate cans & coozies -- and also holds containers with handles. (And maybe even a small pair of binoculars?).
• Color is White/White.

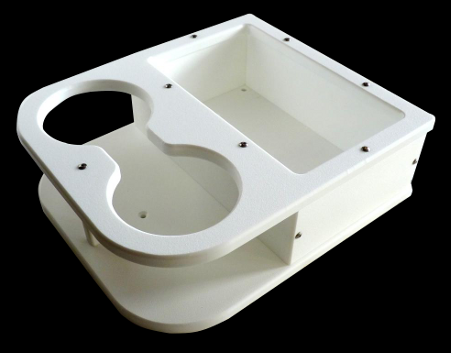

• Mount to horizontal surfaces with fasteners of your choice.
• Overall outside dimensions: 11" long x 9.5" wide x 3.5" high.
• Holder is sized to accommodate cans & coozies as well as cups with handles.
• 7.5"L x 4.5"W x 3"D storage bin with center divider.
• Color is White/White.
• Shipping weight 5 lbs.

1. Our 4 and 5-Drink Holder kits each contain nine parts -- 2 storage bin ends and 2 sides -- 1 storage bin partition -- 2 vertical support pieces -- 1 bottom panel -- and1 top panel. Our 2-Drink Holder has a single vertical support and no bin partition. Otherwise, all the assembly parts and steps are the same. And each kit includes all the stainless steel fasteners you'll need.

2. You'll begin by assembling the unit's storage bin. Simply butt the notched ends against the side pieces and -- using the pre-drilled holes as guides -- drill into the bin's edges to a depth of about 3/4". Then attach your fasteners as shown.

3. Once you have your storage bin screwed together, fit it into the slots in the unit's bottom panel. The tolerances are exact, and you may have to tap the bin a little to seat it all the way into the slots. Also -- you'll need to insert the bin's partition at this point (which our assembler here forgot to do). You can either fit the partitiion into the bottom panel's slot and fit the bin over the partition's back edge -- or fit the partition into the bin's slot and tap it into place along with the bin itself.

4. Once the storage bin and partition are in place, tap the 2 vertical support pieces into their pre-cut slots as well.

5. Now fit the Drink Holder's top panel over the storage bin and vertical supports. Those pieces will fit into pre-cut slots and may require a bit of tapping to get everything well seated. Once this is done, you're ready to begin final assembly.

6. Using the pre-drilled holes in the top panel as guides, use a 5/64" to 3/32" bit to drill pilot holes into the edges of the storage bin and vertical supports. Make your holes about 3/4" deep -- being very careful to drill straight into the center.

7. Now that you have the unit's top panel fully screwed into place, simply flip the Drink Holder over so that the bottom faces up as shown in step #8.

8. Here again, use the pre-drilled holes in the bottom panel as guides for pilot holes you'll sink into the bin's edges and into the vertical supports. You'll note there are more holes than fasteners. These provide drainage for the storage bin, as well as pilot holes for whatever fasteners you use to install the finished unit on your boat. So do that, and then go have some fun.

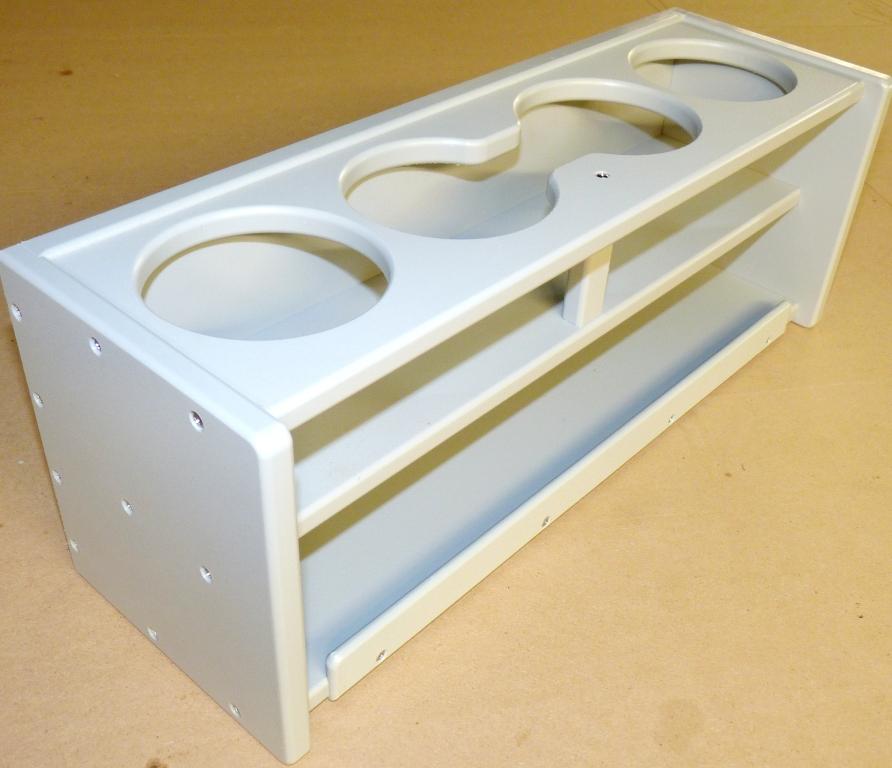

• Mount to vertical surfaces with fasteners of your choice.
• Overall outside measurements: 17.50" long x 5.50" wide x 6.50" high.
• Holder holds cans & coozies as well as containers with handles.
• A storage shelf below the drink holder area provides 2-1/4" high storage for small items. Storage shelf is fronted by a low fiddle.
• Color is White/White.
• Shipping weight 10 lbs.

Like our other beverage holders, this one is made entirely of 1/2" thick King Starboard (a weather-proof, color-fast marine plastic), and assembled with stainless steel fasteners. Each holder is precision-cut on our CNC machine.

• Mount to horizontal surfaces with fasteners of your choice.
• Mount to horizontal surfaces with fasteners of your choice.
• Holder is sized to accommodate cans & coozies as well as cups with handles.
• .24"L x 4.5"W x 3"D storage bin with center divider.
• Color is White/White.
• Shipping weight 10 lbs.

1. Our 4 and 5-Drink Holder kits each contain nine parts -- 2 storage bin ends and 2 sides -- 1 storage bin partition -- 2 vertical support pieces -- 1 bottom panel -- and1 top panel. Our 2-Drink Holder has a single vertical support and no bin partition. Otherwise, all the assembly parts and steps are the same. And each kit includes all the stainless steel fasteners you'll need.

2. You'll begin by assembling the unit's storage bin. Simply butt the notched ends against the side pieces and -- using the pre-drilled holes as guides -- drill into the bin's edges to a depth of about 3/4". Then attach your fasteners as shown.

3. Once you have your storage bin screwed together, fit it into the slots in the unit's bottom panel. The tolerances are exact, and you may have to tap the bin a little to seat it all the way into the slots. Also -- you'll need to insert the bin's partition at this point (which our assembler here forgot to do). You can either fit the partitiion into the bottom panel's slot and fit the bin over the partition's back edge -- or fit the partition into the bin's slot and tap it into place along with the bin itself.

4. Once the storage bin and partition are in place, tap the 2 vertical support pieces into their pre-cut slots as well.

5. Now fit the Drink Holder's top panel over the storage bin and vertical supports. Those pieces will fit into pre-cut slots and may require a bit of tapping to get everything well seated. Once this is done, you're ready to begin final assembly.

6. Using the pre-drilled holes in the top panel as guides, use a 5/64" to 3/32" bit to drill pilot holes into the edges of the storage bin and vertical supports. Make your holes about 3/4" deep -- being very careful to drill straight into the center.

7. Now that you have the unit's top panel fully screwed into place, simply flip the Drink Holder over so that the bottom faces up as shown in step #8.

8. Here again, use the pre-drilled holes in the bottom panel as guides for pilot holes you'll sink into the bin's edges and into the vertical supports. You'll note there are more holes than fasteners. These provide drainage for the storage bin, as well as pilot holes for whatever fasteners you use to install the finished unit on your boat. So do that, and then go have some fun.
